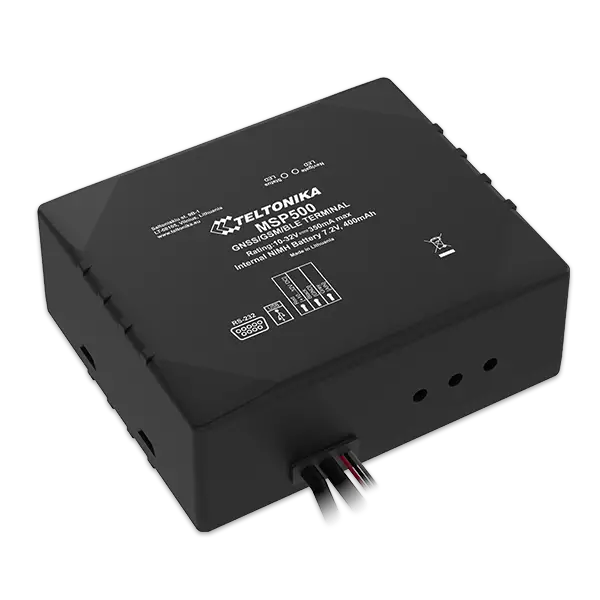

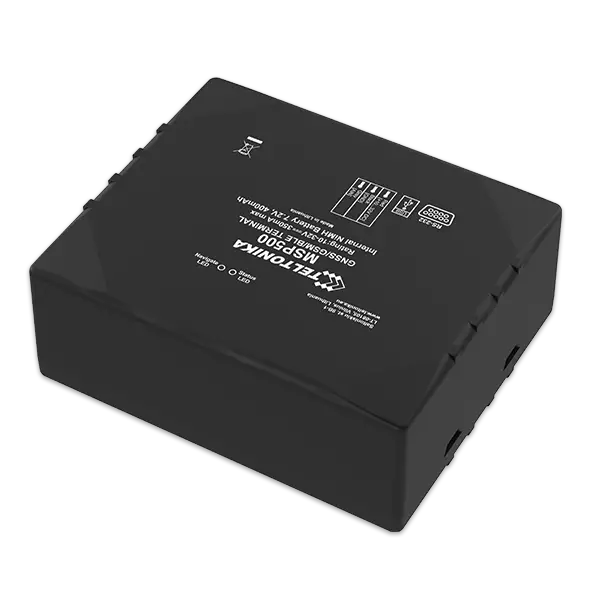

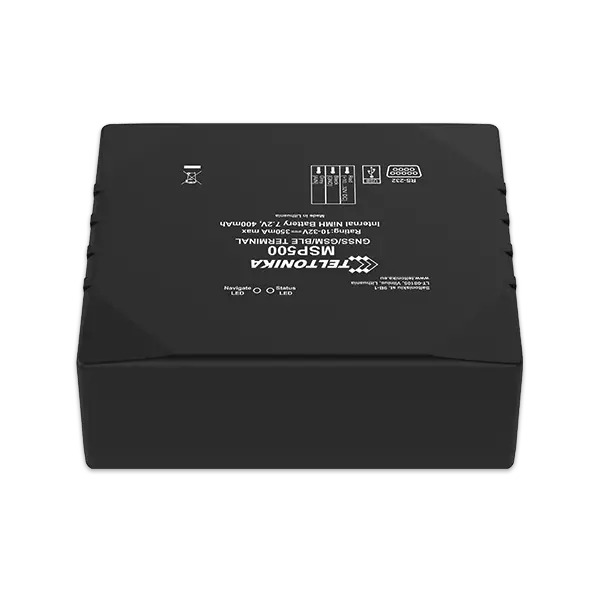

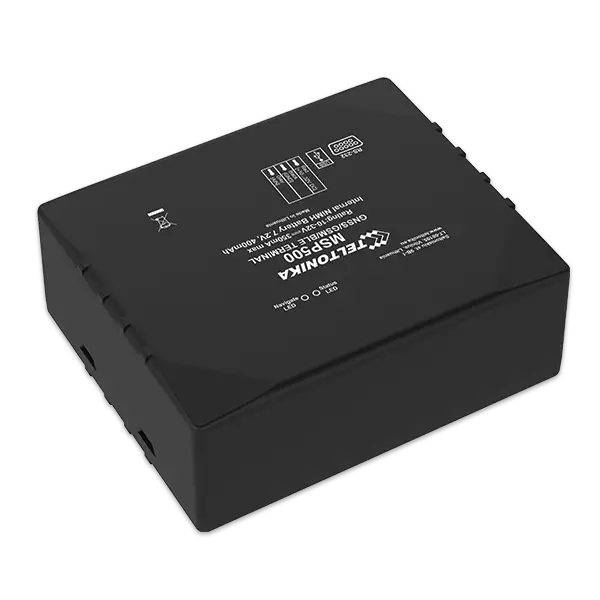

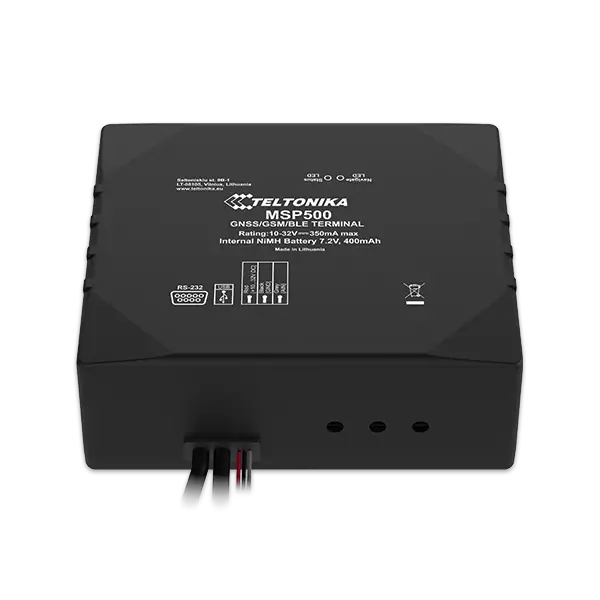

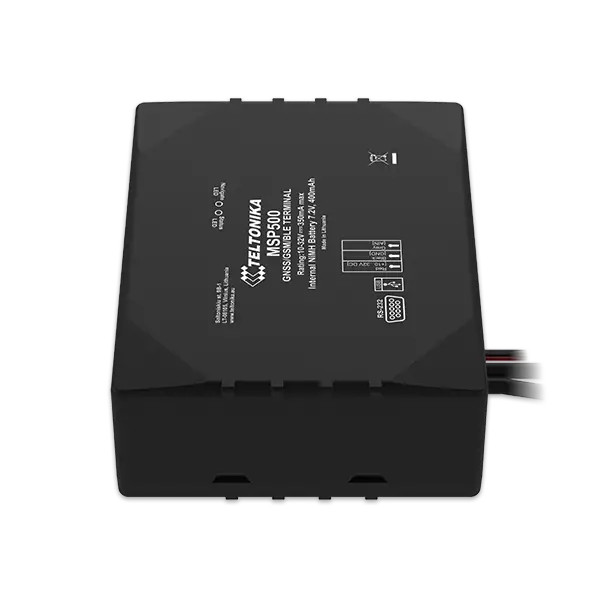

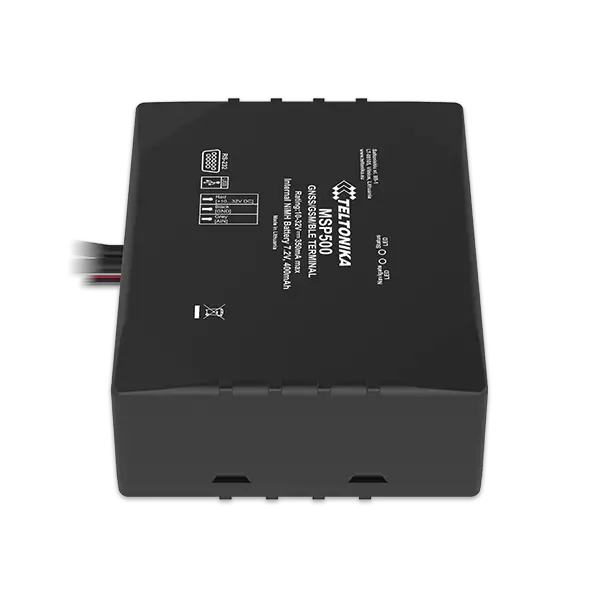

MSP500


Special GNSS/GSM/Bluetooth tracker with speed limiting functionality





Allows device to limit vehicle speed


Bluetooth for external devices and Low Energy sensors


Allows device to work without external power source


External voltage range


RS232 is an industrial standard for serial communication


Classifies the degree of protection against solid objects and water




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




MSP500 is a special tracking terminal with GNSS/GSM/Bluetooth connectivity, internal GNSS/GSM antennas, RS232 interface and internal Ni-Mh battery. Device was designed for speed limiting control.

Speed limiting
Moreover, device contains integrated buzzer and relay for a speed limiting functionality based on a fuel pump power supply switching or accelerator pedal control using additional electronic throttle controller.



Features

MODULE
NameTeltonika TM2500
TechnologyGSM/GPRS/ GNSS/BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver33 channel
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Back-up battery400 mAh Ni-MH battery 7.2 V (2.88 Wh)
Power consumptionAt 12V < 1.4 mA (Ultra Deep Sleep)
At 12V < 3.8 mA (Deep Sleep)
At 12V < 4.1 mA (Online Deep Sleep)
At 12V < 8.6 mA (GPS Sleep)
At 12V < 26.6 mA (Nominal)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
INTERFACE
Analog input1
RS2321
Internal relay1
Internal buzzer1
Terminal block3 contacts
GNSS antennaInternal High Gain
GSM antennaInternal High Gain
USBType-B
LED behaviour2 status LED lights
SIMMicro-SIM + eSIM possibility
Memory128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions103 x 86 x 39 mm (L x W x H)
Weight250 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP65
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection with relay control, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Limp mode
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth)
SMSConfiguration, Events, Debug
GPRS commandsConfiguration, Debug
Time SynchronizationGPS, NITZ, NTP
RS232 modesLog mode, NMEA, LLS, TCP ASCII/Binary, LCD, RFID HID/MDF7, Garmin FMI, POS Printer
Ignition detectionAccelerometer, External Power Voltage, Engine RPM (OBDII dongle)
