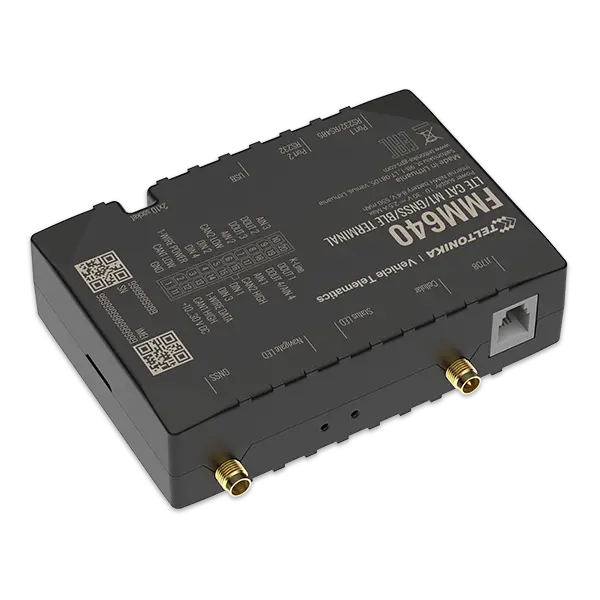

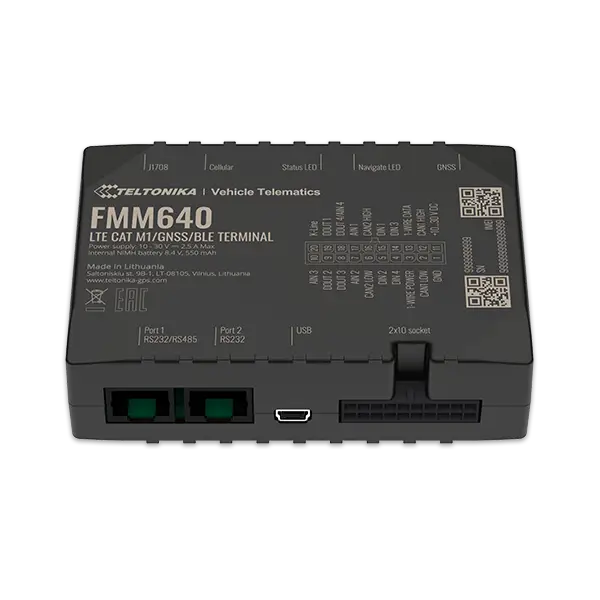

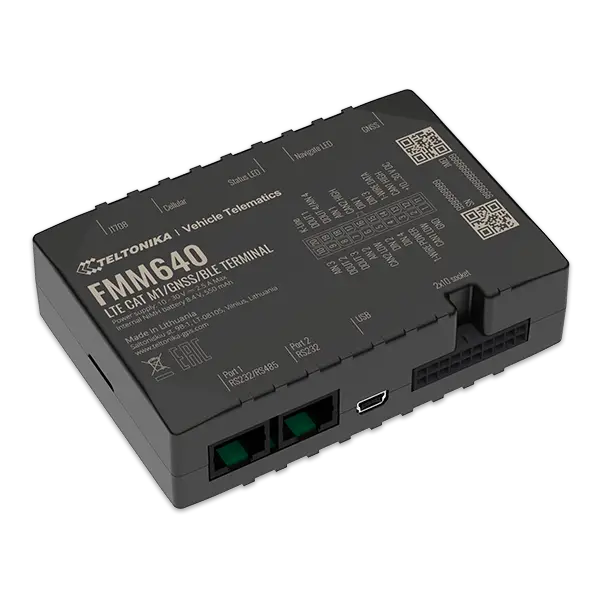

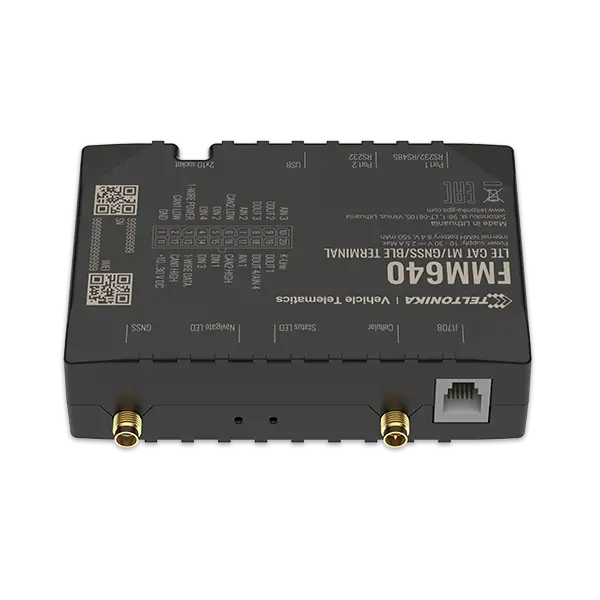

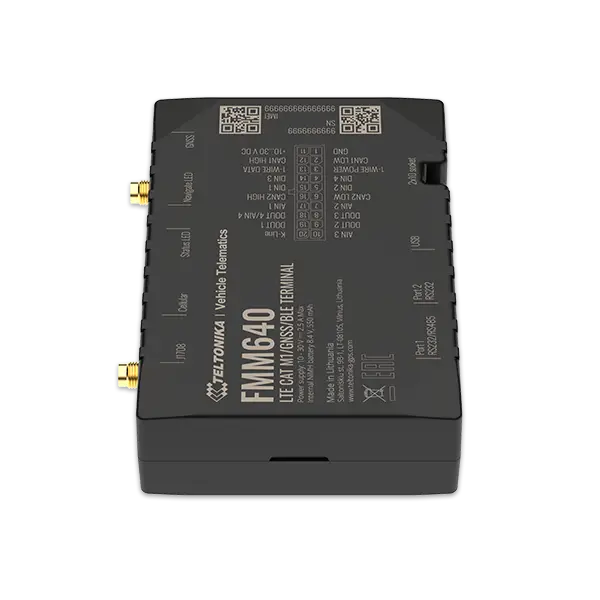

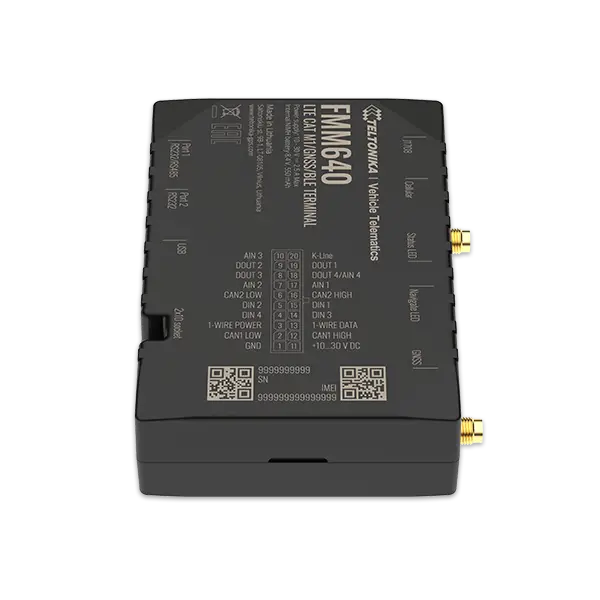

FMM640


Leading GNSS/LTE CAT-M1/NB-IoT/GSM Terminal designed for advanced applications with high capacity backup battery and external antennas.





Device support both LTE M1 and NB IoT connectivity


CAN data reading from vehicles and specialized transport


Dual SIM – significantly reduce roaming costs


Accurate fuel level and temperature monitoring via LLS sensors


RS232/RS485 serial communication interfaces


Tachograph files and data remote download




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




Teltonika FMM640 is PROFESSIONAL worldwide tracker with LTE CAT M1, NB IoT connectivity, that makes this device usable with newest and most cost efficient technologies.

FMM640 features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM will maximize your fleet efficiency. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more. construction & mining, security & emergency services and even more.



Features

MODULE
NameQuectel BG96
TechnologyLTE(CAT M1)/2G(GSM/GPRS)/GNSS
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
ReceiverTracking: 33 channel
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyLTE CAT M1/CAT NB1/EGPRS
2G bandsQuad-band 800/850/900/1900 MHz
4G bandsLTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
LTE TDD: B39 (for CAT M1 only)
Data transferLTE FDD: Max. 375Kbps (DL)/Max.375Kbps (UL)
LTE TDD: Max. 32Kbps (DL)/Max. 70Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Internal Back-up battery550 mAh Ni-Mh, 8,4 V battery
PHYSICAL SPECIFICATION
Dimensions104,1 x 76,8 x 31,5 mm (L x W x H)
Weight197 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
INTERFACE
Digital Inputs4
Digital Outputs4
Analog Inputs4
1-Wire interface1
RS2322
RS4851
CAN J19392
J17081
K-line1
GNSS antennaExternal High Gain
Cellular antennaExternal High Gain
USB2.0 Mini-USB
LED indication2 status LED lights
SIM2x SIM Card (Dual-SIM)
Memory2MB internal flash memory and external Micro SD card up to 32 GB
FEATURES
Movement detectionAccelerometer
ScenariosGreen/Eco Driving, Over Speeding detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification
FunctionalitiesAuto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripheralsGarmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGNSS, NITZ, NTP
Fuel monitoringLLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS, Ultrasonic level sensor
Ignition detectionDigital Input, Accelerometer, External Power Voltage
