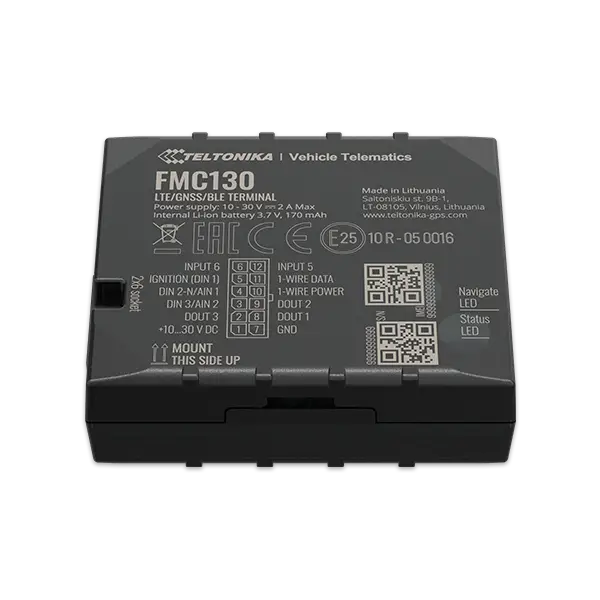

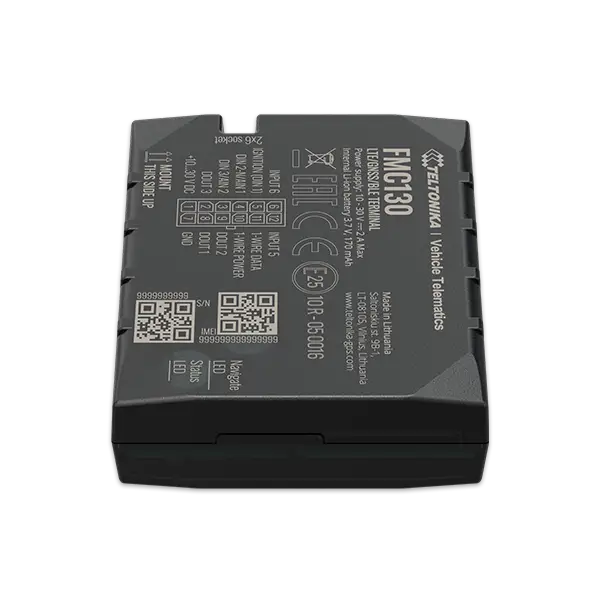

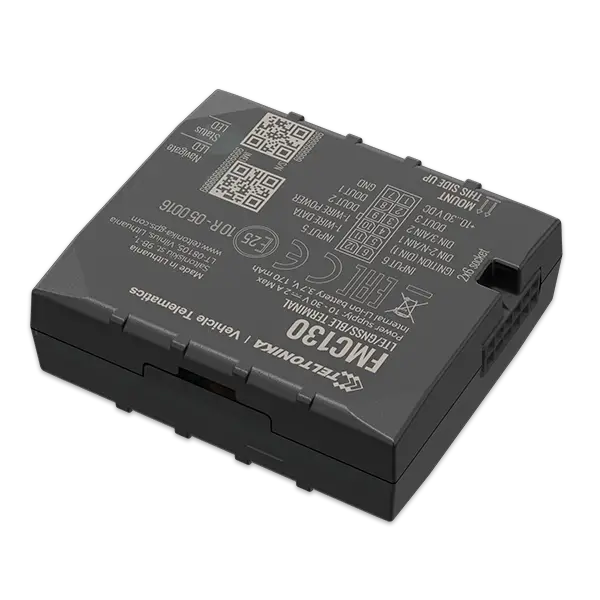

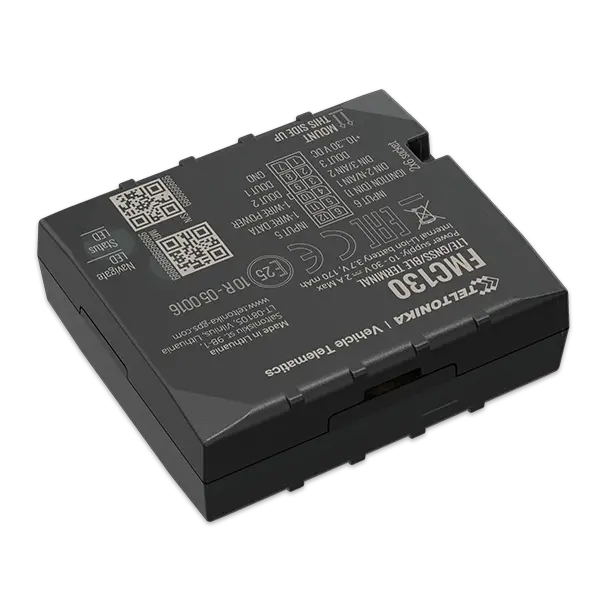

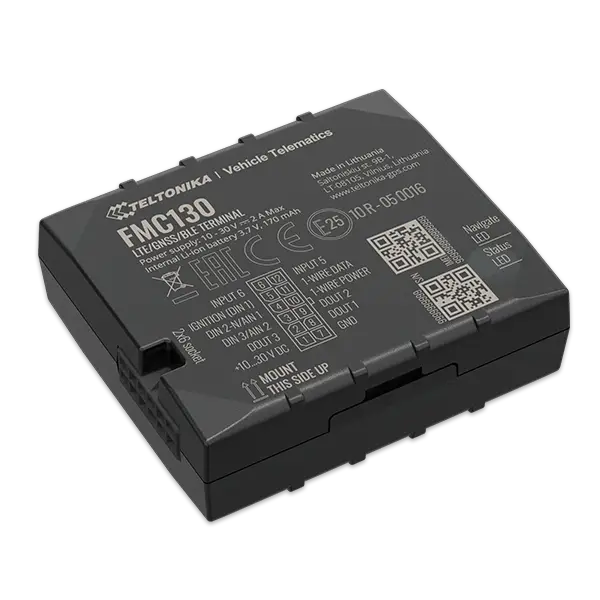

FMC130


Advanced LTE terminal with flexible inputs configuration.





CAN data reading from vehicles and specialized transport


Configurable DIN/AIN for flexible remote monitoring and control


Allows device to work without external power source


Negative input will allow easier installation of accessories


Impulse inputs for fuel flow meters data reading


Reliable 4G (LTE Cat 1) connection with fallback to 3G (UMTS), 2G (GSM) networks




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




Newly introduced FMC130 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery.

FMC130 developed on the existing Teltonika FMB platform, therefore it keeps all of the functionalities from FMB130 and builds on top of them with its industry-leading connectivity coverage.

For starters, FMC130 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.

Additionally, the device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC130 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

Programmable inputs, 3 different configurable DOUT scenarios (immobilizer, buzzer, alarm lights, door lock and other scenarios) together with 4G (LTE Cat 1) compatibility including the 3G (UMTS) and 2G (GSM) fallback compatibility make this one of our most flexible devices ever.



Features

MODULE
NameQuectel EC21-AU, Quectel EC21-EC, Teltonika TM2500
TechnologyLTE(CaT1)/ 3G(UMTS/HSPA)/ 2G(GSM/GPRS)/ GNSS/ BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
ReceiverTracking: 33
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyLTE Cat 1, UMTS, GSM
2G bandsEC21-AU:GSM: B2/B3/B5/B8
EC21-EC:GSM: B3/B8
3G bandsEC21-AU:WCDMA: B1/B2/B5/B8
EC21-EC:WCDMA: B1/B8
4G bandsEC21-AU:LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
EC21-EC:LTE FDD: B1/B3/B7/B8/B20/B28A
Data transferLTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)
UMTS:WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM:GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Internal Back-up battery170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions65 x 56,6 x 20,6 mm (L x W x H)
Weight55 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs3
Negative Inputs1 (Digital Input 2)
Impulse Inputs2 (Digital Input 1, Digital Input 2)
Digital Outputs3
Analog Inputs2
CAN Adapter inputs1
1-Wire1
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIMMicro-SIM + eSIM
Memory128MB internal flash memory
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGNSS, NITZ, NTP
Fuel monitoringLLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
