Advanced LTE terminal with GNSS and LTE/3G/GSM connectivity, RS485/RS232 interfaces and backup battery.
CAN data reading from vehicles and specialized transport
Bluetooth for external devices and Low Energy sensors
1-Wire® interface to monitor temperature data and RFID/iButton tags
RS232/RS485 serial communication interfaces
Double network reliability and multiple network selection
Reliable 4G (LTE Cat 1) connection with fallback to 3G (UMTS)
2G (GSM) network

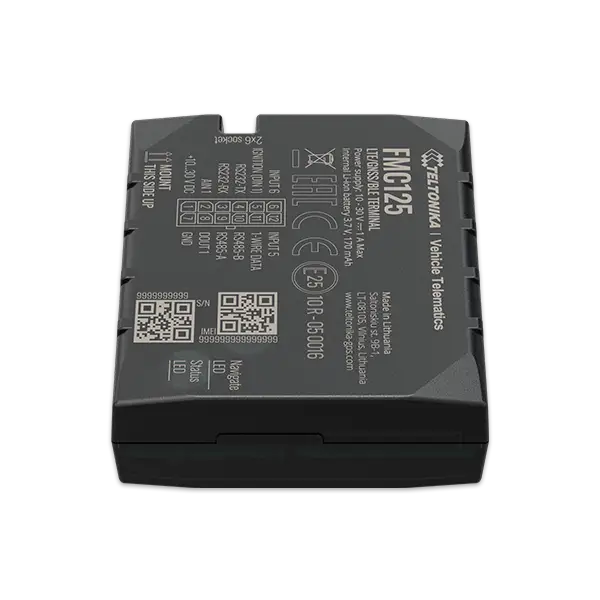

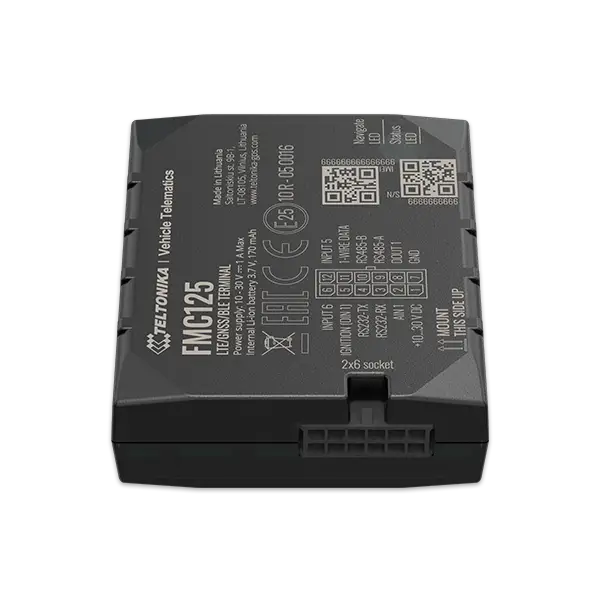

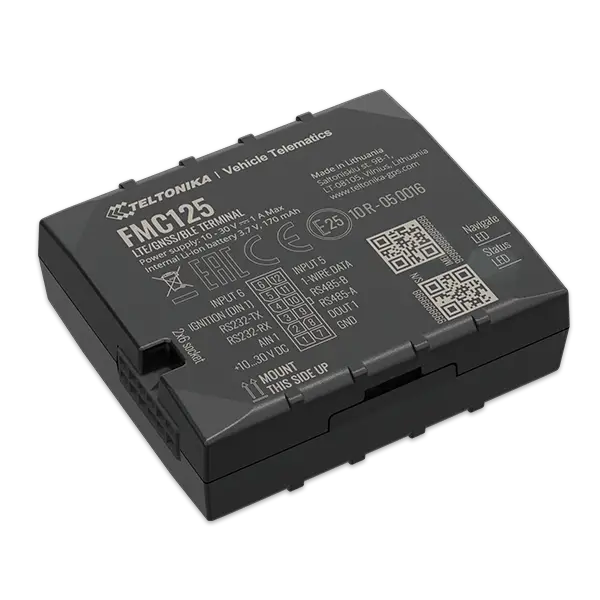

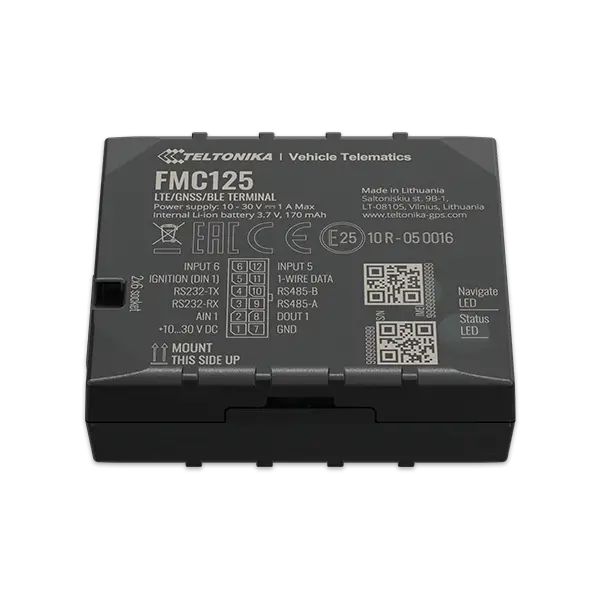

Newly introduced FMC125 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/Bluetooth and LTE modules, internal GNSS and LTE antennas.
FMC125 developed on the existing Teltonika FMB platform, therefore it keeps all of the functionalities from FMB125 and builds on top of them with its industry-leading connectivity coverage.

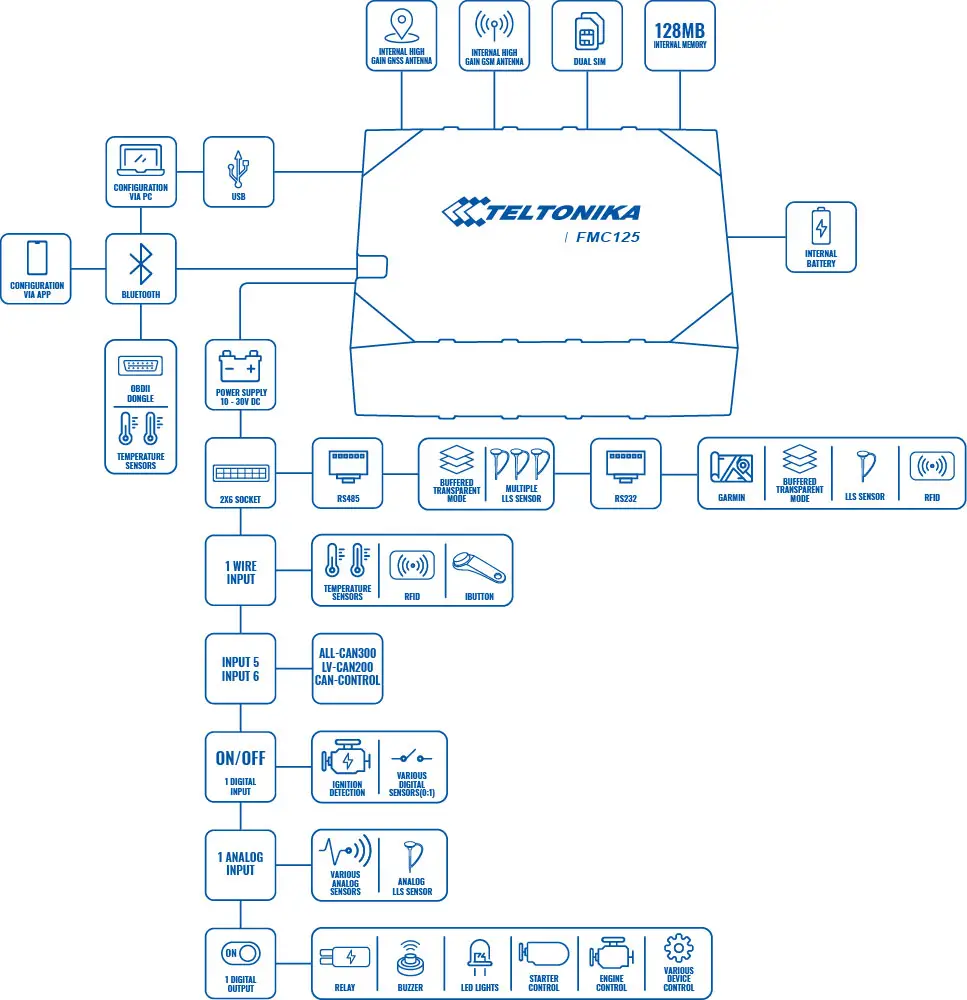

Device is designed for communication with various third party RS232 or RS485 devices, like digital fuel sensors (LLS), Garmin navigation device, RFID reader and much more. It is also excellent for refrigerated transport, because it has extended input/output set and 1-wire interface for temperature monitoring.
The Dual-SIM feature provides a backup communication channel where the coverage of a singular operator is not sufficient. As well Dual-SIM feature will let you significantly reduce roaming costs.
It’s just a small part of existing functionality but it allows to make FMC125 even better.
| MODULE | |
| Name | Quectel EG91-EX, Teltonika TM2500 |
| Technology | LTE(CAT1)/ 3G(UMTS/HSPA)/ 2G(GSM/GPRS)/ GNSS/ BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | LTE CAT1, UMTS/HSPA+ and GSM/GPRS/EDGE |
| 2G bands | EG91-EX: GSM: B3/B8 |
| 3G bands | EG91-EX: WCDMA: B1/B8 |
| 4G bands | EG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support |
| PHYSICAL SPECIFICATION | |
| Dimensions | 67,2 x 49,6 x 25 mm (L x W x H) |
| Weight | 63 g |
| OBD INTERFACE | |
| Data | K-Line, CAN bus data |
| Data reading | Up to 32 vehicle onboard parameters, supported OBD protocols: SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| INTERFACE | |
| Connection | OBDII Socket |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD II |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
