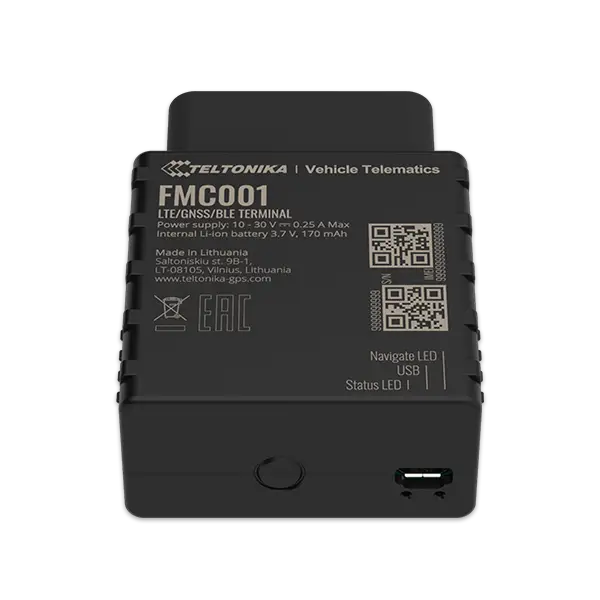

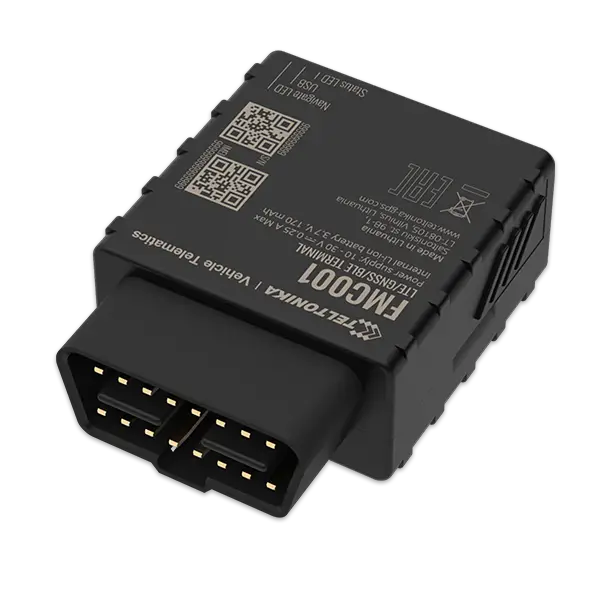

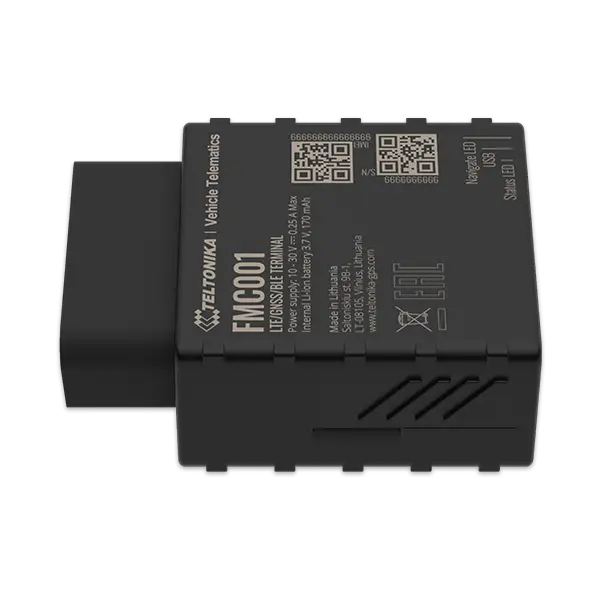

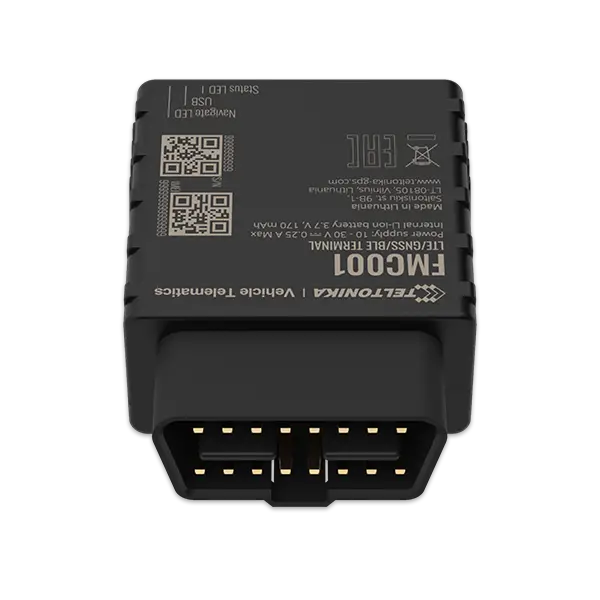

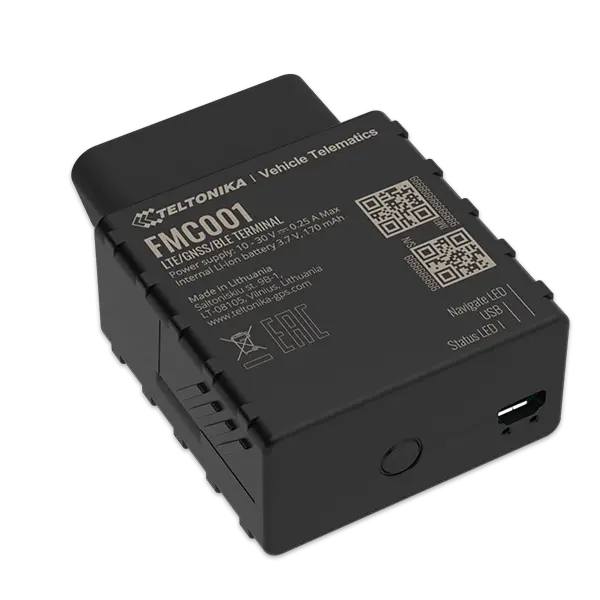

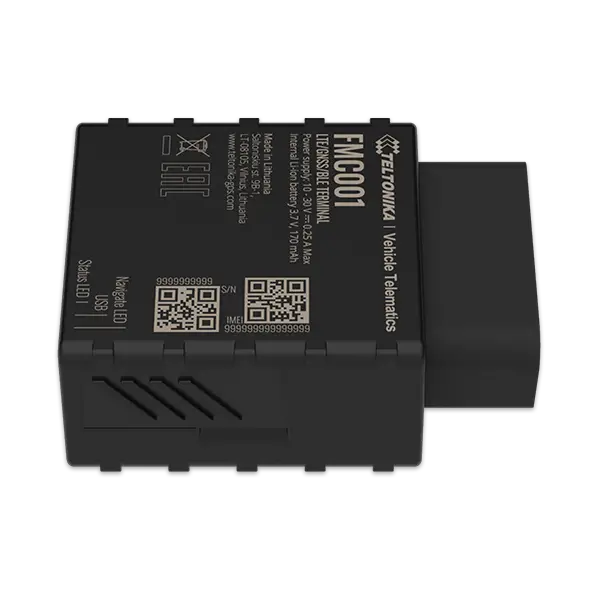

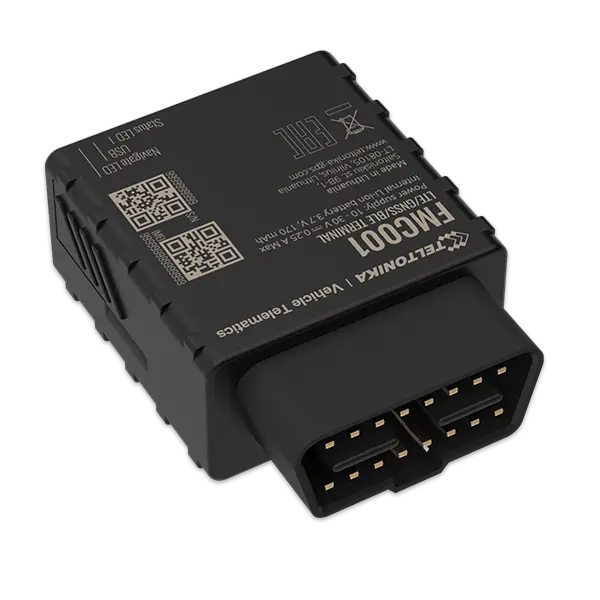

FMC001


LTE/GNSS/BLE plug and play OBD tracker







Reliable 4G connection with fallback to 3G or 2G network



Allows reading CAN bus data from vehicle ECU



Bluetooth for external devices and Low Energy sensors



Crash detection functionality working according accelerometer data





1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




Teltonika FMC001 represents next step in communication technology – this is the first Plug and Track LTE OBD device with GNSS and Bluetooth connectivity. Possibility to read OBD II parameters, effortless installation and detailed accelerometer data provides a compelling solution. This is perfect tracker for a wide range of applications – fleet management of light commercial vehicles, car rental & leasing, driver log-book, insurance telematics (UBI) and so on. Device supports various Bluetooth Low Energy sensors, beacons, firmware and configuration update via Bluetooth.



Features

MODULE
NameQuectel EG91-EX, Teltonika TM2500
TechnologyLTE(CAT1)/ 3G(UMTS/HSPA)/ 2G(GSM/GPRS) /GNSS/ BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver33 channel
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyLTE CAT1, UMTS/HSPA+ and GSM/GPRS/EDGE
2G bandsEG91-EX: GSM: B3/B8
3G bandsEG91-EX: WCDMA: B1/B8
4G bandsEG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28
Data transferLTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Internal Back-up battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions67,2 x 49,6 x 25 mm (L x W x H)
Weight63 g
OBD INTERFACE
DataK-Line, CAN bus data
Data readingUp to 32 vehicle onboard parameters, supported OBD protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)

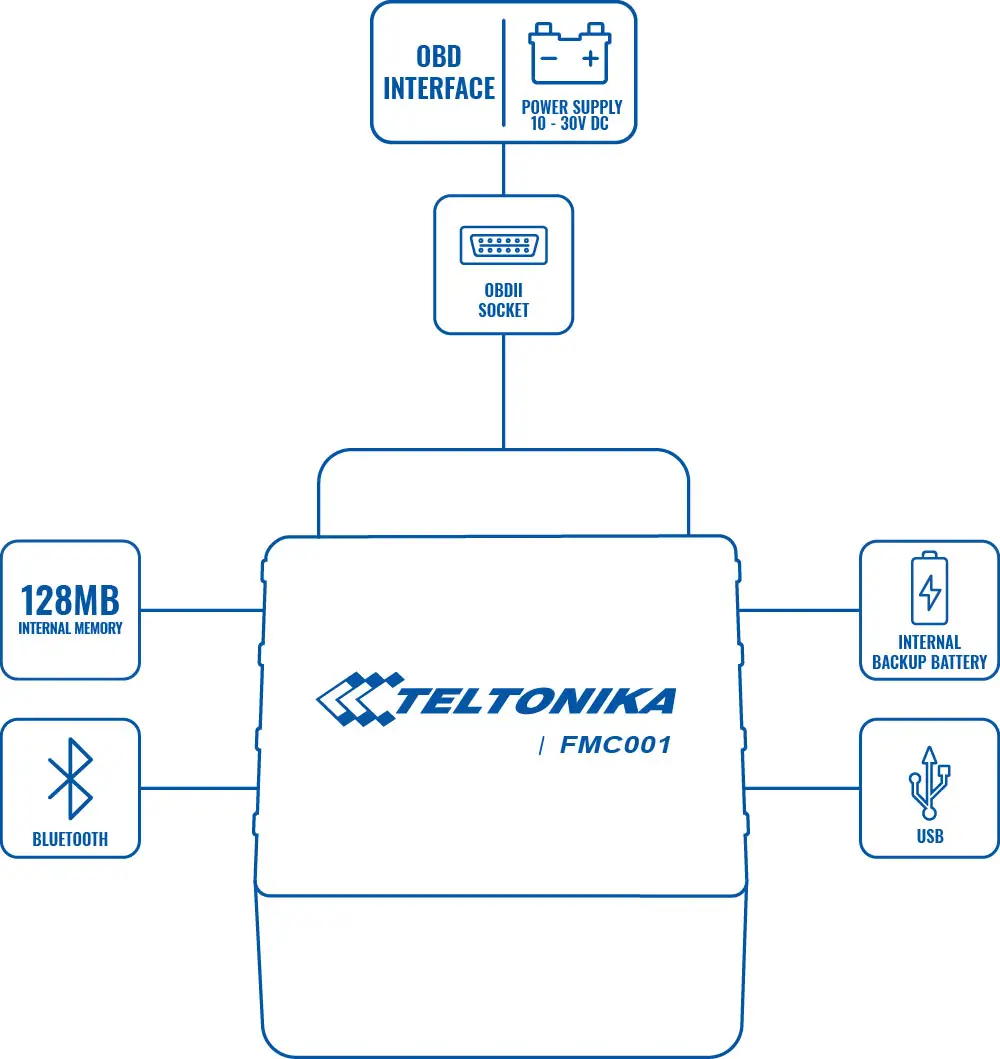

INTERFACE
ConnectionOBDII Socket
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIMMicro-SIM
Memory128MB internal flash memory
OPERATING ENVIRONMENT
Operating temperature
(without battery)
-40 °C to +85 °C
Storage temperature
(without battery)
-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, Debug
GPRS commandsConfiguration, Debug
Time SynchronizationGPS, NITZ, NTP
Fuel monitoringOBD II
Ignition detectionAccelerometer, External Power Voltage, Engine RPM
