Small and professional waterproof tracker with internal high gain GNSS/GSM antenas, Bluetooth and high capacity internal Li-ion battery
Allows device to work without external power source
Digital Input/Output for remote monitoring and control
Bluetooth for external devices and Low Energy sensors
Classifies the degree of protection against solid objects and water
External voltage range
1-Wire® interface to monitor temperature data and RFID/iButton tags

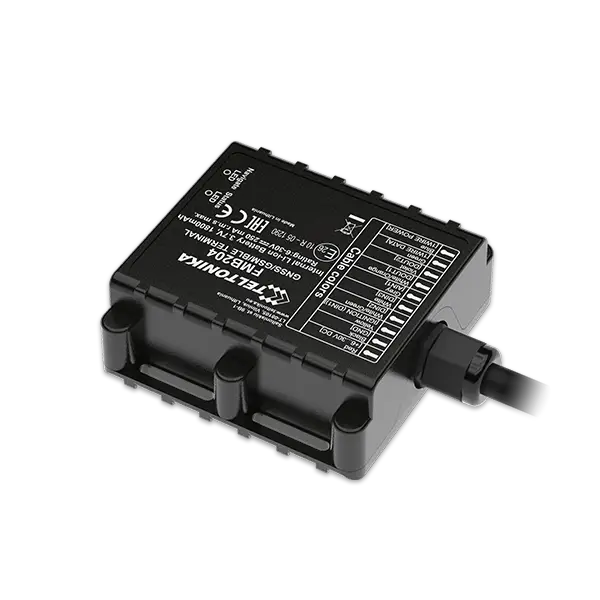

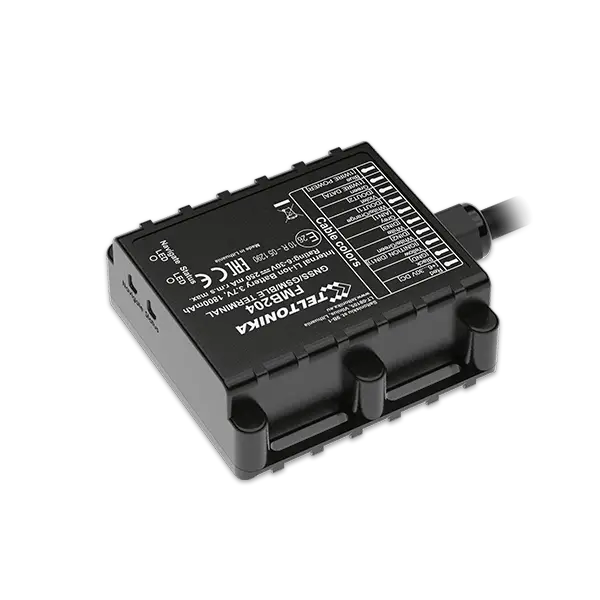

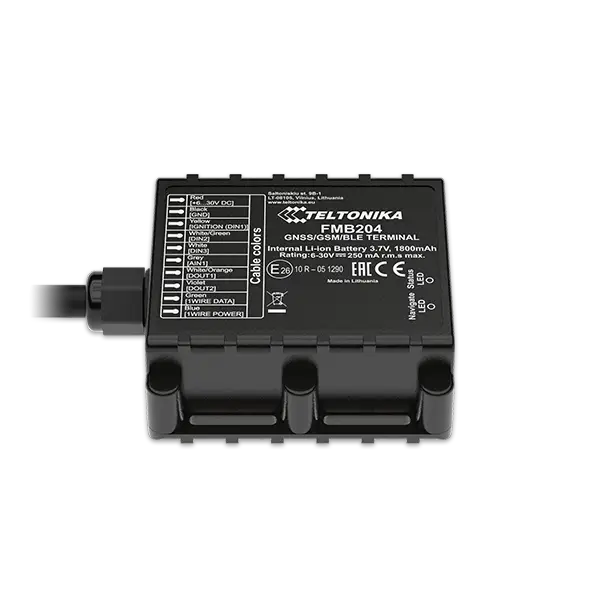

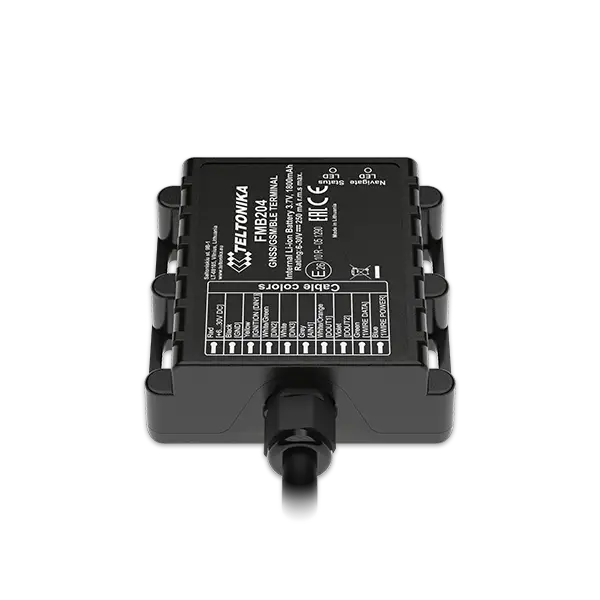

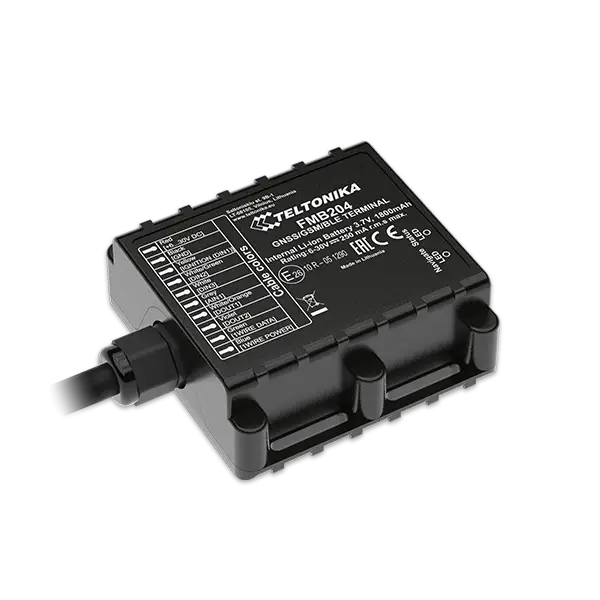

Teltonika FMB204 is a SPECIAL waterproof (IP67) tracker with Bluetooth connectivity, internal high gain GNSS and GSM antennas and integrated high capacity backup battery. Device is designed to work longer without power supply. FMB204 with LiPo battery can work up to 6 days in power saving mode. FMB204 is perfectly suitable for agriculture, delivery, refrigerated transport, trailers tracking, security & emergency services and even more. 6-30V power supply makes FMB204 suitable for motorbikes and water transport.
| MODULE | |
| Name | Teltonika TM2500 |
| Technology | GSM/ GPRS/ GPS/ BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 6 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 1800 mAh Li-Ion battery (6.66 Wh) |
| Power consumption | At 12V < 2,1 mA (Ultra Sleep) At 12V < 3,9 mA (Deep Sleep) At 12V < 4,2 mA (Online Sleep) At 12V < 15,7 mA (GPS Sleep) At 12V < 28,3 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Analog Inputs | 1 |
| 1WIRE DATA | 1 |
| 1WIRE POWER | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 72,5 x 73 x 27,3 mm (L x W x H) |
| Weight | 205 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +70 °C |
| Battery storage temperature | -10 °C to +45°C |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |
