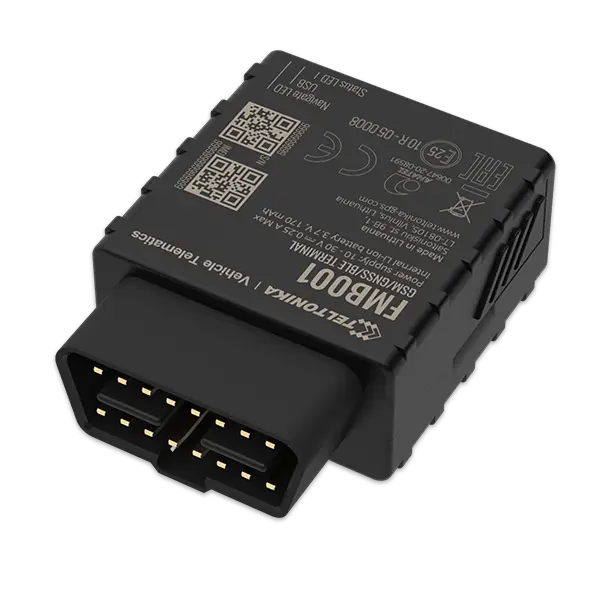

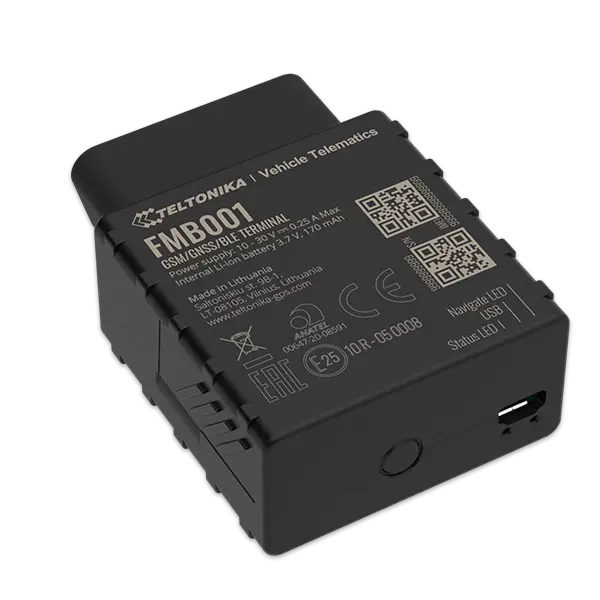

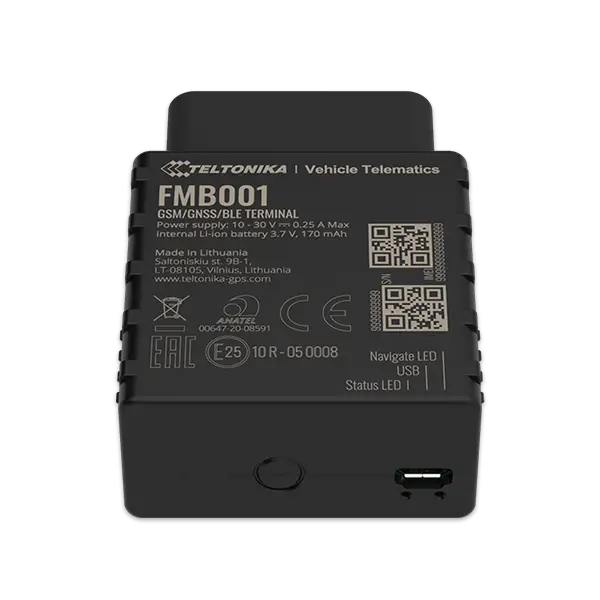

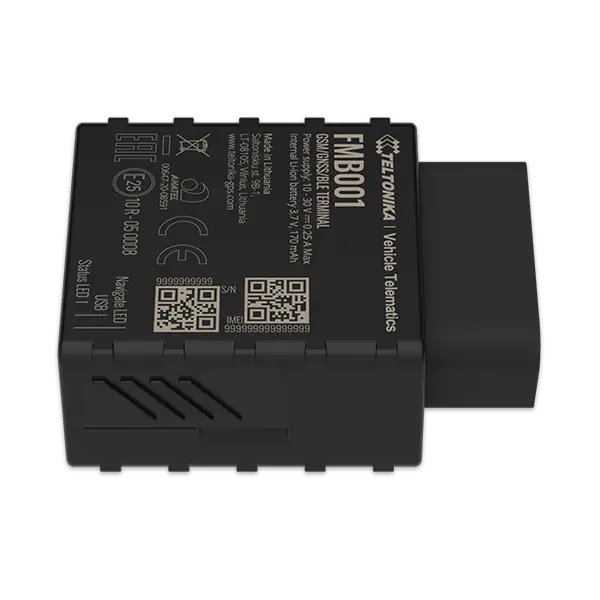

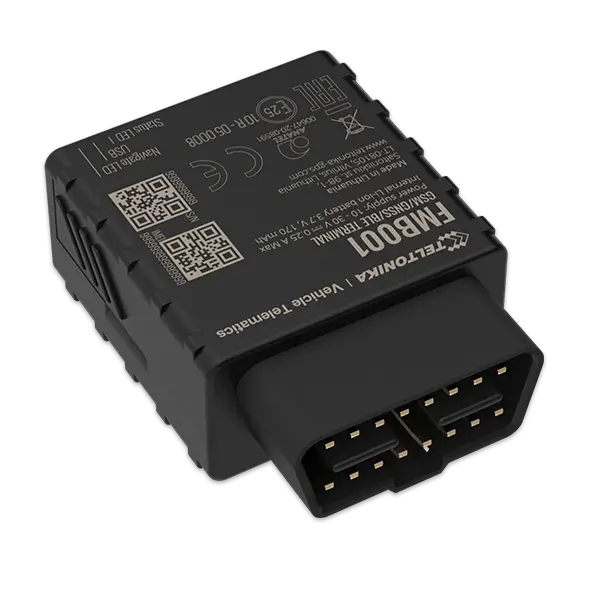

FMB001


Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth connectivity







Allows reading CAN bus data from vehicle ECU



Allows device to work without external power source



Bluetooth for external devices and Low Energy sensors



Crash detection functionality working according accelerometer data





1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




FMB001 is advanced OBDII Plug and Play tracker with GNSS, GSM and Bluetooth connectivity. It is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. Also, it has additional feature – reading OBDII data from vehicles on-board computer. FMB001 device supports temperature/humidity sensors, hands-free, firmware and configuration update via Bluetooth.



Features

MODULE
NameTeltonika TM2500
TechnologyGSM/ GPRS/ GNSS/ BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver33 channel
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12(up to 240 kbps)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Back-up battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumptionAt 12V < 5 mA (Ultra Deep Sleep)
At 12V < 7 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 8 mA (GPS Sleep)
At 12V < 28 mA (nominal)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support
OBD INTERFACE
Data readingUp to 32 vehicle onboard parameters, supported OBD protocols:
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)

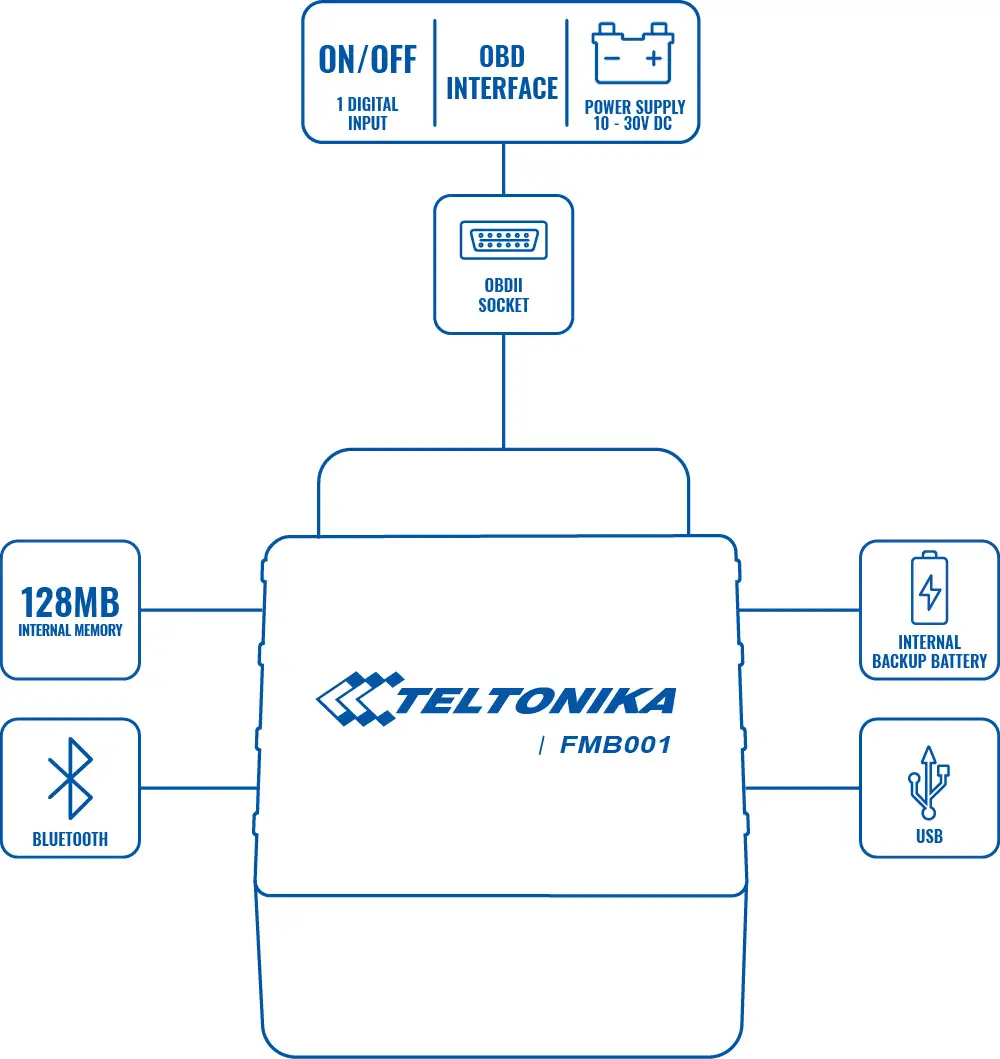

INTERFACE
Digital Inputs1
ConnectionOBDII Socket
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIMMicro-SIM
Memory128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions50,7 x 49,6 x 25 mm (L x W x H)
Weight63 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, Debug
GPRS commandsConfiguration, Debug
Time SynchronizationGPS, NITZ, NTP
Fuel monitoringOBD II
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM
CERTIFICATION & APPROVALS
RegulatoryCE/RED, E-Mark, EAC, RoHS, REACH
